STARPro64

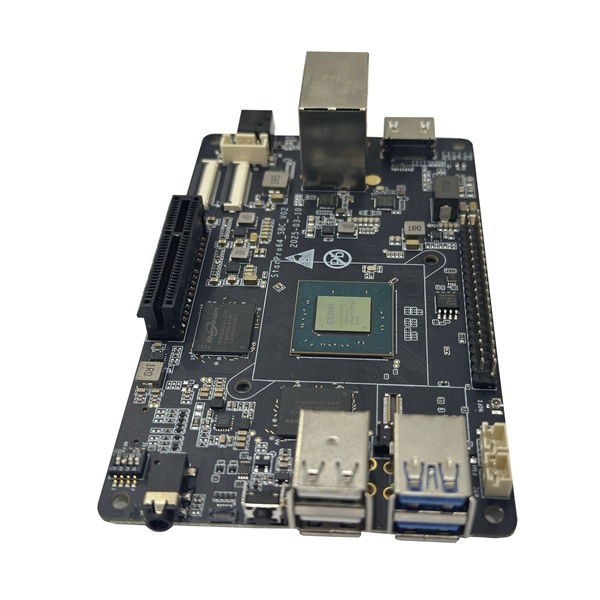

The StarPro64 is a RISC-V based Single Board Computer powered by ESWIN EIC7700X Quad-Core SiFive P550 1.8GHz 64-Bit CPU, Imagination Technology AXM-8-256 GPU, 20TOPS NPU, and supports up to 32GB 64bit 6400MHz LPDDR5 memory. It provides an eMMC module socket, MicroSD Card slot, PCI-e, Pi-2 Bus, USB 3.0, and many other peripheral interfaces for makers to integrate with sensors and other devices.
Software releases
The releases are still in alpha state and are only fit for development and testing purposes.
- The current StarPro64 Linux build actively maintained by PLCT. More information on this image SDK can be found at: https://github.com/rockos-riscv
- The last image build can be found at: https://fast-mirror.isrc.ac.cn/rockos/images/generic/latest/
Alphe-ONE A
This is the early build that contains both 7b Deepseek and QWen2 LLM build, OS based on ROCKOS.
DD image for 32GB eMMC module and above
- for larger than 32GB eMMC, please use gpart to extend the file partition.
- Direct download from PINE64 file server
- MD5 (GZip file): 6669a436104e97e2ad90679e06f62d78
- File Size: 18.21GB
| Default credentials | |
|---|---|
| Super user | eswin/eswin
|
To explore LLM, use terminal program and execute below command lines:
deepseek 7bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/deepseek_r1_distill_qwen_7b/config.json
qwen2 7bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/qwen2_7b/config.json
qwen2 0.5bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/qwen2_0_5b/config.json
SDK releases
- SDK document (some in Chinese): https://files.pine64.org/SDK/StarPro64/docs.7z
- MD5 (7Zip file): 8ee9b660c336d9979191d212e9826226
- File Size: 34MB
- SDK Release:
- 20250228: https://files.pine64.org/SDK/StarPro64/EIC7x_AI_Release_20250228.7z
- MD5 (7Zip file): f9171ec8b30e5d4d8eda1185f72af5e4
- File Size: 1.932GB
- 20250330: https://files.pine64.org/SDK/StarPro64/EIC7x_AI_Release_20250330.7z
- MD5 (7Zip file): 8ddc861755ed26785e67674aad8db87c
- File Size: 1.946GB
- LLM and tools release:
- LLM 20250228: https://files.pine64.org/SDK/StarPro64/deepseek&qwen-v0228.7z
- MD5 (7Zip file): b8ee72ee6a8912afefac3fa43a18be87
- File Size: 722MB
- Tools 20250228: https://files.pine64.org/SDK/StarPro64/EIC7x_nn-tools_Release_20250228.7z
- MD5 (7Zip file): 868434b274412e173c3e264118dcb336
- File Size: 6.625GB
SoC and Memory Specification

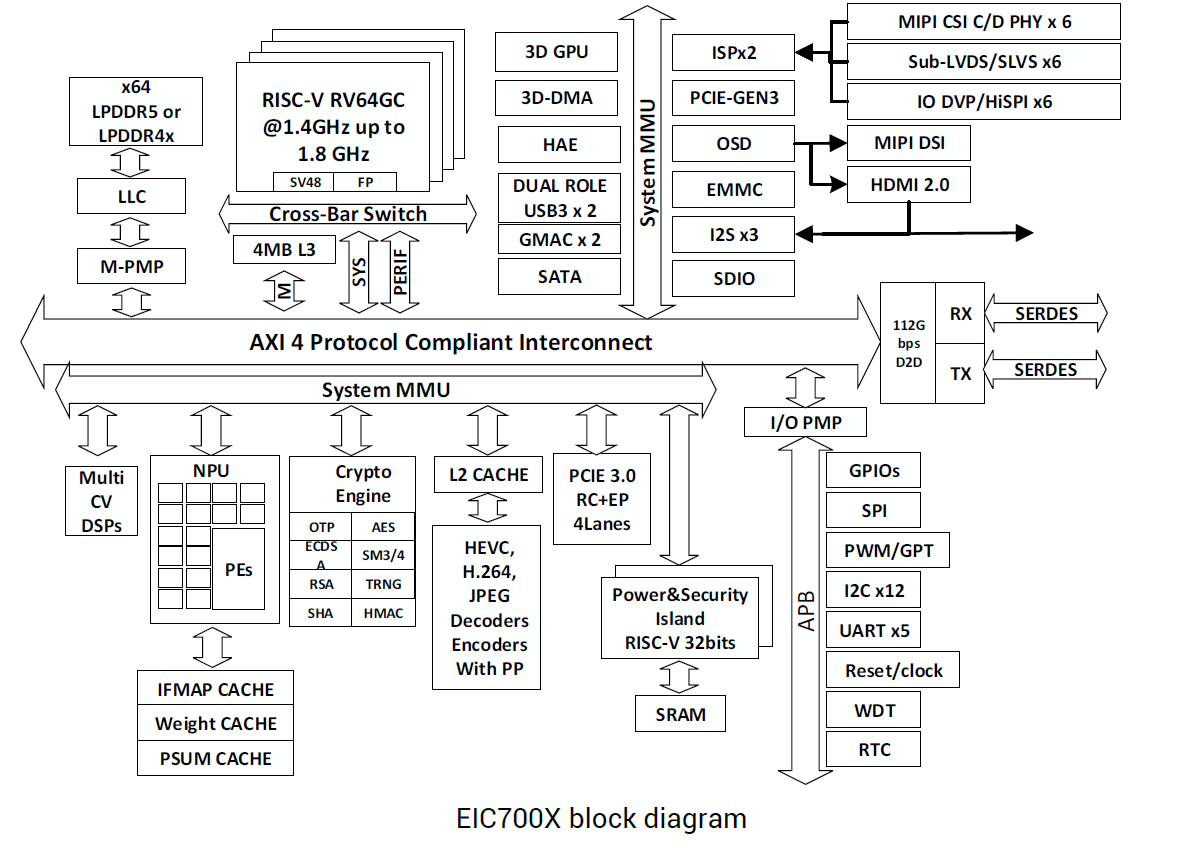

- Based on ESWIN EIC7700X
CPU Architecture
- Fully compliant with the RISC-V RV64GBC ISA specification
- 64-bit RISC-V Application Core
- Features 13-stage, triple-issue, out-of-order pipeline
- 32KB L1 I-cache with ECC
- 32KB L1 D-cache with ECC
- Private 256KB L2 Cache
- Shared 4MB L3 Cache
GPU Architecture
- Support OpenCL 3.0
- Support OpenGL ES 3.x
- Support Vulkan 1.3
- 128-wide arithmetic logic unit (ALU) design
- Visually Lossless image compression – frame buffer compression and decompression (FBCDC) algorithm
- Lossless data compression – geometry compression, which is performed in the Geometry Processing phase of the 3D graphics workload
- Performance: 256 FP32 FLOPs/Clock, 1024 AI INT8/Clock
NPU Architecture
- 19.95 TOPS(INT8), 9.975TOPS(FP16 or INT16)
System Memory
- 32GB 64bits LPDDR5@6400MHz RAM Memory.
Board Features
Video
- Digital Video output up to 4K@60Hz
- H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4K×2K @ 60fps
- H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4K×2K @ 60fps
Audio
- 3.5mm audio Jack
Network
- Dual 10/100/1000Mbps Ethernet
- 2.4GHz/5Ghz MIMO WiFi 802.11 b/g/n/ac/ax with Bluetooth 5.3
Storage
- on-board 128Mbit (16MByte) XSPI NOR flash memory - bootable
- microSD - bootable, supports SDHC and SDXC and storage up to 256GB
- eMMC - bootable (optional eMMC Module)
- 2× USB3.0 Dedicated Host port
- 2× USB2.0 Shared Host port
Expansion Ports
- PCIe Gen3 ×4 lane
- 2×20 pins "Pi2" GPIO Header
- 4 lane MiPi DSI port for LCD panel
- 4 lane MiPi CSI port for camera module
Board Information, Schematics and Certifications
Model "A" Baseboard Dimensions: 133mm×80mm×19mm
Input Power: DC 12V @ 3-5A 5.5mmOD/2.1mmID center-positive Barrel DC Jack connector
Schematic:
- StarPro64 Schematic 20250310 v2.0 (Production Released version)
- StarPro64 Component Reference location v2.0 (top layer)
- StarPro64 Component Reference location v2.0 (bottom layer)
Certifications:
- Disclaimer: Please note that PINE64 SBC is not a "final" product and in general certification is not necessary. However, PINE64 still submits the SBC for FCC, CE, and ROHS certifications and obtain the certificates to prove that the SBC board can pass the testing. Please note, a final commercial product needs to perform its own testing and obtain its own certificate.
- Not yet available
Datasheets for Components and Peripherals
ESWIN EIC7700X SoC information:
LPDDR5 (315 Balls) SDRAM:
eMMC information:
- PINE64 eMMC module schematic
- PINE64 USB adapter for eMMC module V2 schematic
- PINE64 USB adapter for eMMC module PCB in JPEG
- 16GB Foresee eMMC Datasheet
- 32GB/64GB/128GB SanDisk eMMC Datasheet
SPI NOR Flash information:
Ethernet related info:
- TBA
WiFi/BT module info:
Casing/Enclosure Compatibility
The table below collect known information about casing and enclosure compatibility for the StarPro64 sbc.
| Casing/Enclosure | Compatible | Notes |
|---|---|---|
| ROCKPro64 PREMIUM ALUMINUM CASING | No | StarPro64 has two stacked ethernet ports, making it too tall. |
| Acrylic Enclosure | Partial | The screw closer to the LEDs and the one closer to the dip switches touch some components, potentially shorting or damaging them. Screw with a smaller head might work. |
Bringup Notes
- Lup Yuen's StarPro64 bring up article section 1-7
- Boot DIP switches' labeling is the same as STAR64: "ON" means "0".
- Boot DIP switch 1 represents the least significant bit in the table at page 14 of the schematic.
