PinePower 65W GaN Charger

PinePower 65W render

A small and compact palm size 65W wall socket power adapter. It features 2 USB-C ports and 1 USB-A port charger. Gallium Nitride technology ensures a small and light charger with high charging efficiency. It has a retractable US plug.

General specifications

Body

  • Dimensions: 74.8mm x 36.6mm x 32mm
  • Weight: 130 grams
  • Build: Plastic
  • Color: Black

Power

  • Input: AC 100-240V 50/60Hz 1.5A Max
  • Output: 65W
  • Power switch

Connections

  • 240Vac input US plug, adapters for AU, EU, and UK,
  • 1x USB-A
  • 2x USB-C

Power specifications

Output Max output power Power ranges PD Power ranges QC Power ranges PPS
Single USB-C1 or C2 65W 5V3A, 9V3A, 12V3A, 15V3A, 20V3.5A - 3.3-11V5A
Single USB-A 65W - QC3.0 4.5V5A, 5V4.5A, 9V3A, 12V3A, 20V3A -
USB-C1 &

USB-C2 combined

  • 45W
  • 18W
  • 5V3A, 9V3A, 12V3A, 15V3A
  • 5V3A, 9V2A, 12V1.5A
- -
USB-C1 &

USB-A combined

  • 45W
  • 18W
  • 5V3A, 9V3A, 12V3A, 15V3A
  • -
  • -
  • 5V3A, 9V2A, 12V1.5A
-
USB-C1 &

USB-C2 + USB-A combined

  • 45W
  • 15W
  • 5V3A, 9V3A, 12V3A, 15V3A
  • 5V3A
- -

Internals

TBA

PinePower 120W Desktop Power Supply

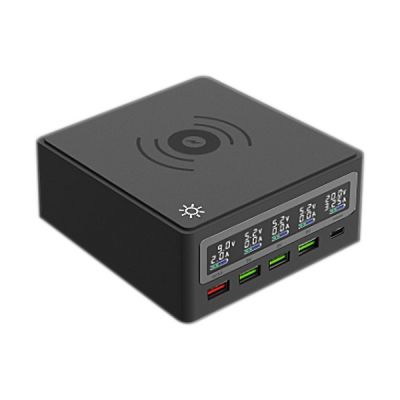

PinePower Desktop 120W render

A 120W desktop power adapter. It features 1 USB-C port and 4 USB-A port. The 120W output is not per port, but total output power. This is calculated by combining the 65W USB-C, 3x15W USB-A and the 18W USB-A QC, making a total of 128W. The only difference between the US and EU edition is the supplied power cable. Every port, with exception of the wireless Q-charger, has a display, portraying the output voltage and amps.

General specifications

Body

  • Dimensions: 123mm x 115mm x 48mm
  • Weight: 543 grams
  • Build: Plastic
  • Color: Black

Display

  • Individual port voltage status display
  • Individual port current status display
  • Display turn off switch

Power

  • Input: AC 100-240V 50/60Hz ?A Max
  • Output: 120W
  • Power switch

Connections

  • 240Vac input either US or EU plug is supplied
  • 4x USB-A
  • 1x USB-C

Power specifications

Output Protocol Version Max output power Power ranges
USB-C PD ? 65W 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A
USB-A QC 3.1 18W 5V3A, 9V2A, 12V1.5A
USB-A USB ? 15W 5V3A
Wireless charger Qi 1.2 10W -

Internals

TBA
