ALPHA-One
The ALPHA-One is a Generative 7b LLM AI Agent based on StarPro64 board RISC-V based Single Board Computer with 20TOPS(int 8) NPU capability, and preinstalled 64G eMMC module contains 7b Deepseek/Owen LLM build in docker form.
Software releases
This is the early build that contains both 7b Deepseek and QWen2 LLM build, OS based on ROCKOS.
DD image for 32GB eMMC module and above
- for larger than 32GB eMMC, please use gpart to extend the file partition.
- Direct download from PINE64 file server
- MD5 (GZip file): 6669a436104e97e2ad90679e06f62d78
- File Size: 18.21GB
| Default credentials | |
|---|---|
| Super user | eswin/eswin
|
To explore LLM, use terminal program and execute below command lines:
deepseek 7bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/deepseek_r1_distill_qwen_7b/config.json
qwen2 7bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/qwen2_7b/config.json
qwen2 0.5bLLM command line： sudo /opt/eswin/sample-code/npu_sample/qwen_sample/bin/es_qwen2 /opt/eswin/sample-code/npu_sample/qwen_sample/src/qwen2_0_5b/config.json
SDK releases
- SDK document (some in Chinese): https://files.pine64.org/SDK/StarPro64/docs.7z
- MD5 (7Zip file): 8ee9b660c336d9979191d212e9826226
- File Size: 34MB
- SDK Release:
- 20250228: https://files.pine64.org/SDK/StarPro64/EIC7x_AI_Release_20250228.7z
- MD5 (7Zip file): f9171ec8b30e5d4d8eda1185f72af5e4
- File Size: 1.932GB
- 20250330: https://files.pine64.org/SDK/StarPro64/EIC7x_AI_Release_20250330.7z
- MD5 (7Zip file): 8ddc861755ed26785e67674aad8db87c
- File Size: 1.946GB
- LLM and tools release:
- LLM 20250228: https://files.pine64.org/SDK/StarPro64/deepseek&qwen-v0228.7z
- MD5 (7Zip file): b8ee72ee6a8912afefac3fa43a18be87
- File Size: 722MB
- Tools 20250228: https://files.pine64.org/SDK/StarPro64/EIC7x_nn-tools_Release_20250228.7z
- MD5 (7Zip file): 868434b274412e173c3e264118dcb336
- File Size: 6.625GB
Main Board and SoC Specification
- Based on StarPro64 Single Board Computer wiki page
- Based on ESWIN EIC7700X SoC
Features
System Memory
- 32GB 64bits LPDDR5@6400MHz RAM Memory.
- 64GB eMMC preintsalled with 7b Deepseek/Qwen LLM

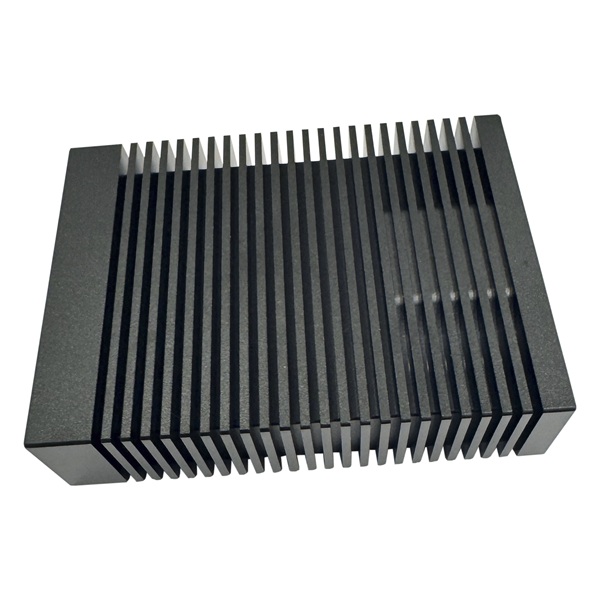

Case
- CNC from single Aluminum block
- Passive cooling, built-in heat pipe that directly contact with SoC
Network
- Dual 10/100/1000Mbps Ethernet
- 2.4GHz/5GHz MIMO WiFi 802.11 b/g/n/ac/ax with Bluetooth 5.3
Expansion Ports
- 2× USB3.0 Dedicated Host port
- 2× USB2.0 Shared Host port
- Digital Video output up to 4K@60Hz
- 3.5mm audio Jack with mic in
Certifications
- Not yet available
Potential Improvement
- Current 7bLLM throughput is around 3.5 tokens/second using docker form, potential improve upto 10 tokens/second when operates LLM in native mode.
- Potential increase LLM capability from 7b to 15b with system software optimization
- If ALPHA-One proven its potential, consider release ALPHA-Two which can host up to 30b LLM
